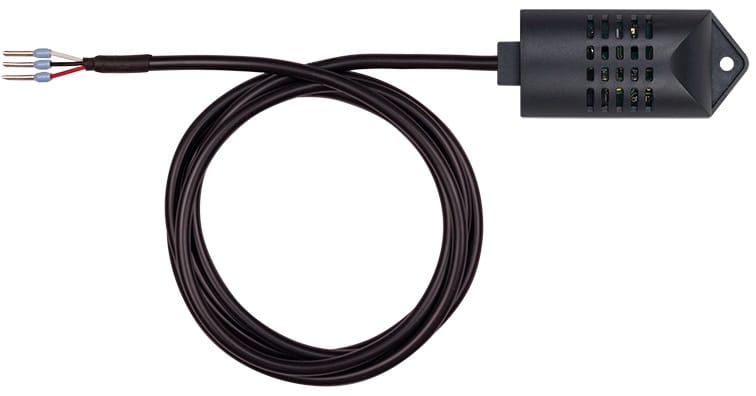

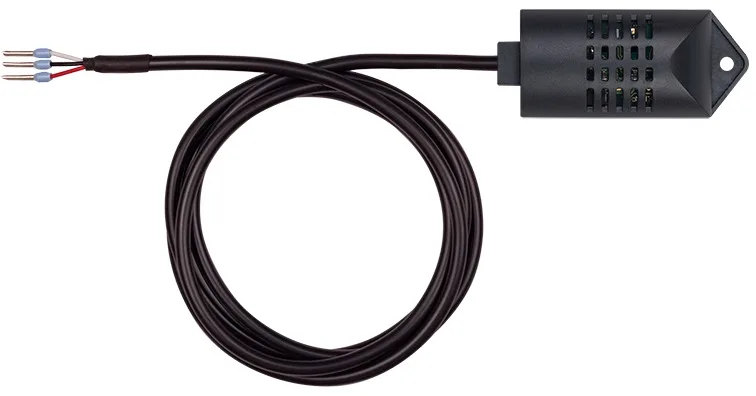

The TSH202B is a 1-Wire Compact Temperature and Humidity Sensor designed for accurate humidity and temperature monitoring in a discrete black housing. This sensor integrates a capacitive humidity and band-gap temperature sensors with a 12-bit ADC for quality data and fast response, and supporting multiple sensors via a unique serial code. The TSH202B is larger than the TSH202, but both sensors are in a single discrete black housing that, offers a cost-effective data collection solution.
The TSH202B is a 1-Wire Compact Temperature and Humidity Sensor that is a small, yet dependable sensor designed for precise humidity and temperature data acquisition. It incorporates a specialized capacitive component for humidity detection and a band gap sensor for temperature readings, both efficiently connected to a 12-bit analog-to-digital converter. This integration ensures excellent signal quality and a rapid response. Utilising the 1-Wire bus communication protocol and featuring a unique 64-bit serial code, the TSH202B facilitates straightforward connection of numerous sensors for concurrent temperature and humidity monitoring.
Due to its compact form factor, the TSH202B is particularly well-suited for applications with spatial constraints, including environmental monitoring systems and HVAC control. Whether the requirement is for monitoring a single area or multiple locations, the TSH202B offers an economical and trustworthy solution for comprehensive humidity and temperature data collection.
| Temperature | Humidity | |
| Operating Range*: | -20 to +60°C | 10 to 90%RH |
| Tolerance | ±0.4°C (1.0°C Max) | ±3%RH (5%RH Max) |
| Long-Term Drift (Typical): | 0.05°C | 0.25%RH |
| Resolution: | 0.1°C | 0.1%RH |
| Power Supply: | 4 to 5.5vDC @ 5mA | |
| Dimensions: | 62 x 28 x 16mm | |
| Cable Length: | 1m | |
* Recommended operating range is -10 to 60°C @ 20-80%RH. Prolonged operation beyond these ranges may result in a shift of sensor reading and slow recovery time.
TSH202B
£45.99
