Description

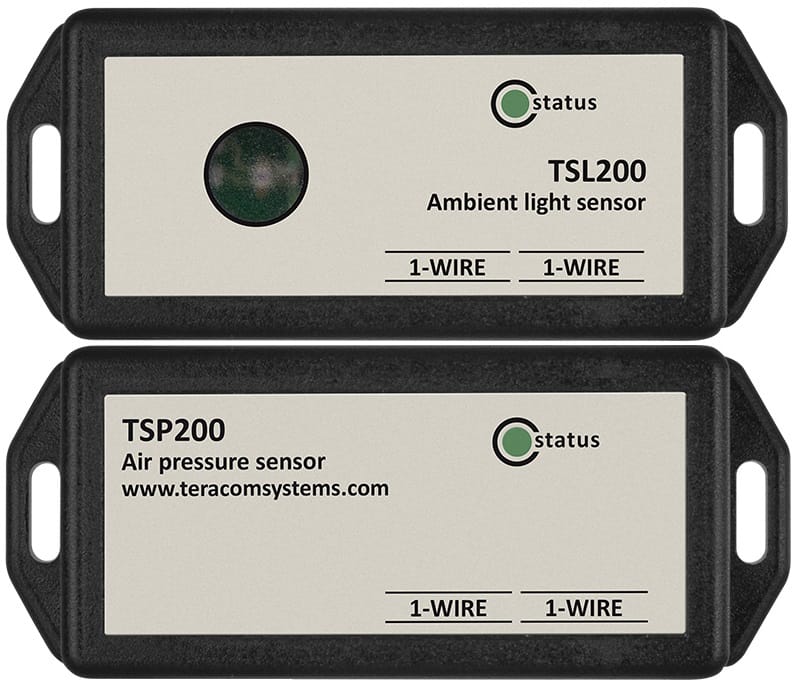

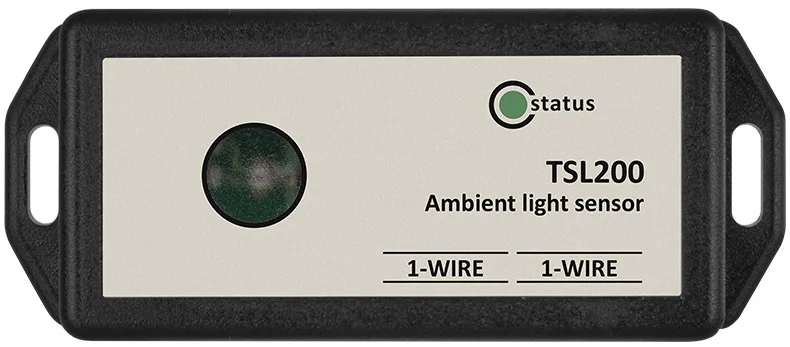

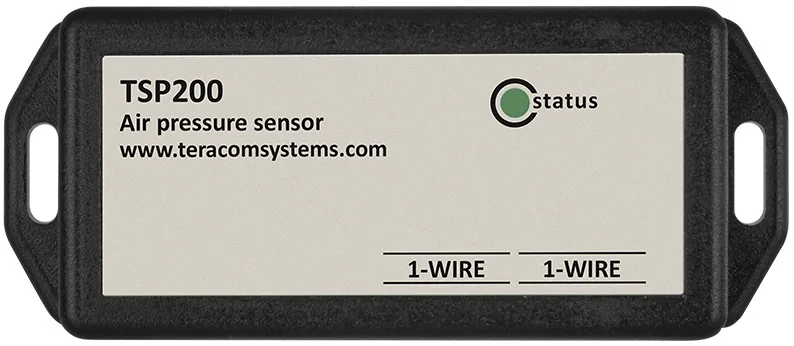

The TSL200 and TSP200 form a complementary pair of 1-Wire ambient condition modules designed for sensing ambient condition within a 1-Wire network. The TSL200 is a highly sensitive ambient light sensor, capable of measuring visible light intensity with an impressive dynamic range of up to 83,000 lux. Its strong infrared rejection ensures its spectral response closely matches that of the human eye, making it ideal for lighting control and daylight harvesting applications. The TSP200 provides precise barometric pressure measurements, utilising a robust silicon MEMS element. It’s characterised by high accuracy, linearity, and long-term stability, operating efficiently even with nano-power consumption across a wide temperature range, making it suitable for low-power environmental monitoring.
Both sensors can be integrate seamlessly into a 1-Wire network, leveraging their unique 64-bit serial codes to allow multiple units to operate on the same bus without interference. This common communication protocol simplifies wiring and system expansion. The TSL200 offers automatic full-scale settings for precise light measurement across varying intensities, while the TSP200’s internal temperature compensation ensures accuracy over its operating range. Each sensor contributes a vital environmental parameter to a holistic monitoring solution, from optimising lighting based on ambient conditions to ensuring healthy indoor environment by tracking light levels and understanding pressure trends. Their daisy-chain wiring capability via RJ11 connectors further underscores their ease of deployment in scalable atmospheric sensing systems.
Features
- Measuring light intensity, as visible by the human eye.
- IP30 ingress protection
- High electromagnetic (EMC) immunity
- High linearity and accuracy
- Easy installation
- Excellent long-term stability
- Unique 64-bit serial number for identification in multi-sensor systems
Applications
- Home Automation
- Office condition monitoring
- Building’s management systems (BMS)
- Greenhouse condition monitoring
- Lab and product process monitoring
- Altitude chambers
- Tunnel ventilation system
Specifications
| Parameter | TSL200 | TSP200 |
| Supply Voltage Range (1-Wire Bus): | 4.5 to 5.5V | 4.0 to 5.5V |
| Maximum Supply Current (1-Wire Bus): | 4mA | 2mA |
| Measurement Range: | 0 to 83,000 Lux | 300 to 1,100hPa |
| Resolution: | 0.01 Lux | 0.1hPa |
| Accuracy: | ±5% | ±0.12hPa (Relative Accuracy) ±1hPa (Absolute Accuracy) |
| Optical Field of View (FOV): | ±45° from normal, defined by enclosure opening | N/A |
| Ingress Protection: | IP30 | |
| Operating Range: | 0 to +40°C (5-95%RH Non-Condensing) | -20 to +70°C (0-85%RH Non-Condensing) |
| Dimensions: | 85 x 35.1 x 23.5mm | |

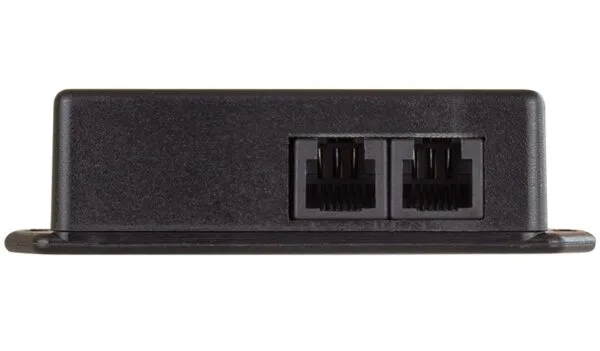

| Connectors: | 2 x RJ-11 in parallel | |
Pinout of RJ-11 Connectors
 |
Pin | Description | UTP Wire Colour |  |
| 1 | 1-Wire Ground | White/Brown | ||
| 2 | 1-Wire Ground | White/Green | ||
| 3 | 1-Wire Data | Green | ||
| 4 | 1-Wire Ground | White/Orange | ||
| 5 | 1-Wire +VDD | Orange | ||
| 6 | 1-Wire +VDD | Brown |
