Description

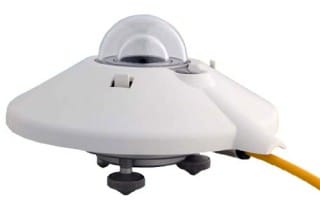

Fully compliant with ISO 9060:2018 spectrally flat Class B specifications, the CMP6 delivers excellent spectral absorption and long-term stability characteristics. Compared to the CMP3 model, these instruments provide improved performance due to the increased thermal mass and the double glass dome construction.

The CMP6 are robust pyranometers that have been designed to provide high quality measurements with little maintenance needs. The CMP6 has an easy-to-remove drying cartridge filled with easy-to-replace desiccant that is supplied in convenient refill packets.

The CMP6 does not require any power. Incoming solar radiation generates a continuous millivolt output, which is converted in a data logger to irradiance in W/m² using the calibrated sensitivity.

The following items are included with CMP6 Series pyranometers:

  • CMP6 Pyranometer
  • Sun shield
  • 25m Cable, pre-wired with 2-pin connector
  • Calibration certificate
  • Instruction sheet
  • Pyranometer fixing kit CMP6: 2 stainless steel screws M5 x 80mm; Nuts and flat washers; Nylon insulation ring
  • 2 desiccant bags for CMP6
  • CD-ROM with product documentation

Specifications

Classification to ISO 9060:2018: Spectrally Flat Class B
Sensitivity: 5 to 20µV/W/m²
Impedence: 20 to 200Ω
Expected Output (0-1500W/m²): 0 to 30mV
Response Time (63%): <6 Seconds
Response Time (95%): <12 Seconds
Spectral Range (20% Points): 270 to 3000nm
Spectral Range (50% Points): 285 to 2800nm
Zero offsets (unventilated)
(a) thermal radiation (at 200W/m²):
(b) temperature change (5K/h):
(c) total zero offset:		 < ±8 W/m²
< ±2 W/m²
< ±10 W/m²
Non-Stability (Change/Year): <±1%
Non-Linearity (100 to 1000W/m²): <±1%
Direction Response: <±20W/m²
Spectral Selectivity (350 to 1500nm): <±3%
Tilt Response (0 to 180° at 1000W/m²): <±1%
Temperature Response: < ±2% (-10 to +40°C)
Field of View: 180°
Accuracy of Bubble Level: ±0.1°
Detector Type: Thermopile
Operating Range: -40 to +80°C (0-100%RH)
Dimensions (Diameter x Height): 150 x 92.5mm
Cable Length: 25m
