Keller Series 35X Flush Diaphragm Pressure Transmitters
The Series 35X is a high-precision Piezoresistive pressure transmitter featuring a flush-mounted metal diaphragm and delivers a highly accurate, mathematically compensated output signal. Standard accuracy is 0.05% of full scale for both RS485 serial and analog outputs. The RS485 comms allow the Control Center Series 30 software, for easy reconfiguration ...
Keller High Temperature Pressure Transmitters Series 35XHTC
Keller High temperature pressure transmitter, for temperatures up to 300°C. Flush diaphragm, pressure ranges up to 1000 bar , with 4-20mA or 0-10v output and optional RS485 output. ...
Keller 35 X HT(T) Pressure Transmitter for Applications in Bio-Reactors or Autoclaves
Keller High temperature pressure transmitters, for temperatures up to 150 degrees C, Series . Flush diaphragm, pressure ranges -1 Bar to 30 bar , with 4-20mA or 0-10v output. ...
Keller Series 25Y Flush Diaphragm Temperature Compensated Pressure Transmitter
The Series 25Y pressure transmitter has digital temperature compensation which provides accuracy of 0.6%FS over 0-50°C or 0.8% over -10 to +80°C. It is available in pressure ranges from vacuum to 600 bar gauge or absolute and can be supplied with 4-20mA, 0-5v, 0-10v or 0.5 - 4.5v outputs. Units ...
Series M5HB Ultra-Fast and Precise Pressure Transmitters
The Series M5HB pressure transmitter have a 0-50kHz dynamic range and M5 pressure connection are suitable for both static and dynamic (ie. fast pressure pulsations at close proximity) pressure measurements. The sensors have digital temperature compensation over temperature ranges of -20-125C or -40 to 180C which provides an accuracy of ...
Flush Diaphragm Pressure Transmitter, Series DMP331, ranges from vacuum up to 600 Bar, with 1" or 1½" or 2" triclamp hygenic stainless steel fitting, accuracy 0.25 - 0.5%, operating temperature -25 to +125°C. Output 4-20mA, 0-10V, 0-5V ...
Industrial Pressure Transmitter for Aggressive Media. The DMK 331 is a pressure transmitter for universal applications in the industry as well as for especially viscous, pasty or highly contaminated media. Basic element is a mechanical and chemical robust ceramic sensor. A variety of standard output signals as well as mechanical ...
Terwin 2000 Series Extrusion Pressure/Temperature Transducers
The Terwin 2000 series transducers have been designed to meet the most exacting requirements in modern day extrusion technology. Fitted with the unique Di‐Hard diaphragms, these transducers are suitable for extrudate temperatures up to 450C/842F and are resilient against attack from most abrasive or corrosive products. When it is required ...

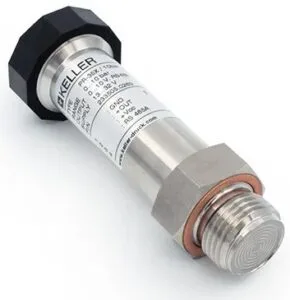

Keller Series 35X Flush Diaphragm Pressure Transmitters
The Series 35X is a high-precision Piezoresistive pressure transmitter featuring a flush-mounted metal diaphragm and delivers a highly accurate, mathematically compensated output signal. Standard accuracy is 0.05% of full scale for both RS485 serial and analog outputs. The RS485 comms allow the Control Center Series 30 software, for easy reconfiguration of analog output ranges and adjustments to zero point and gain settings. With ATEX certification, the Series 35X is ideally suited for use in hazardous ...
Keller High Temperature Pressure Transmitters Series 35XHTC
Keller High temperature pressure transmitter, for temperatures up to 300°C. Flush diaphragm, pressure ranges up to 1000 bar , with 4-20mA or 0-10v output and optional RS485 output. ...
Keller 35 X HT(T) Pressure Transmitter for Applications in Bio-Reactors or Autoclaves
Keller High temperature pressure transmitters, for temperatures up to 150 degrees C, Series . Flush diaphragm, pressure ranges -1 Bar to 30 bar , with 4-20mA or 0-10v output. ...

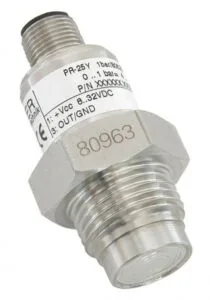

Keller Series 25Y Flush Diaphragm Temperature Compensated Pressure Transmitter
The Series 25Y pressure transmitter has digital temperature compensation which provides accuracy of 0.6%FS over 0-50°C or 0.8% over -10 to +80°C. It is available in pressure ranges from vacuum to 600 bar gauge or absolute and can be supplied with 4-20mA, 0-5v, 0-10v or 0.5 - 4.5v outputs. Units are fitted with a fully welded, 316 Stainless Steel, flush diaphragm and a wide range of electrical connection options. Replaces the previous series 25S. ...
Series M5HB Ultra-Fast and Precise Pressure Transmitters
The Series M5HB pressure transmitter have a 0-50kHz dynamic range and M5 pressure connection are suitable for both static and dynamic (ie. fast pressure pulsations at close proximity) pressure measurements. The sensors have digital temperature compensation over temperature ranges of -20-125C or -40 to 180C which provides an accuracy of 0.5%FS and 1.0%FS respectively. Available pressure ranges are 0-3, 0-10 and 0-30 Bar Absolute and an output signal of 0-10vDC. The sensors have a separate ...
DMP331 Flush Diaphragm Pressure Transmitter
Flush Diaphragm Pressure Transmitter, Series DMP331, ranges from vacuum up to 600 Bar, with 1" or 1½" or 2" triclamp hygenic stainless steel fitting, accuracy 0.25 - 0.5%, operating temperature -25 to +125°C. Output 4-20mA, 0-10V, 0-5V ...

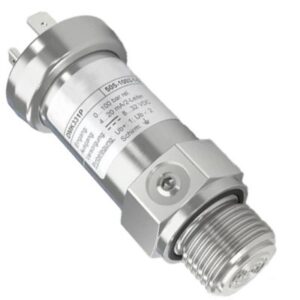

DMK331P Flush Diaphragm Pressure Transmitter
Industrial Pressure Transmitter for Aggressive Media. The DMK 331 is a pressure transmitter for universal applications in the industry as well as for especially viscous, pasty or highly contaminated media. Basic element is a mechanical and chemical robust ceramic sensor. A variety of standard output signals as well as mechanical and electrical connections make the DMK 331 covering a wide field of applications. The customer has the possibility to use by highly contaminated media a ...

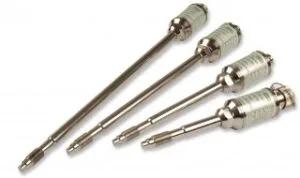

Terwin 2000 Series Extrusion Pressure/Temperature Transducers
The Terwin 2000 series transducers have been designed to meet the most exacting requirements in modern day extrusion technology. Fitted with the unique Di‐Hard diaphragms, these transducers are suitable for extrudate temperatures up to 450C/842F and are resilient against attack from most abrasive or corrosive products. When it is required to measure temperature as well as pressure, the 2000 series is available with type J or K integral thermocouples. Standard thermocouples have grounded junctions. ...
Keller Series 35X Flush Diaphragm Pressure Transmitters
The Series 35X is a high-precision Piezoresistive pressure transmitter featuring a flush-mounted metal diaphragm and delivers a highly accurate, mathematically compensated output signal. Standard accuracy is 0.05% of full scale for both RS485 serial and analog outputs. The RS485 comms allow the Control Center Series 30 software, for easy reconfiguration ...
Keller High Temperature Pressure Transmitters Series 35XHTC
Keller High temperature pressure transmitter, for temperatures up to 300°C. Flush diaphragm, pressure ranges up to 1000 bar , with 4-20mA or 0-10v output and optional RS485 output. ...
Keller 35 X HT(T) Pressure Transmitter for Applications in Bio-Reactors or Autoclaves
Keller High temperature pressure transmitters, for temperatures up to 150 degrees C, Series . Flush diaphragm, pressure ranges -1 Bar to 30 bar , with 4-20mA or 0-10v output. ...
Keller Series 25Y Flush Diaphragm Temperature Compensated Pressure Transmitter
The Series 25Y pressure transmitter has digital temperature compensation which provides accuracy of 0.6%FS over 0-50°C or 0.8% over -10 to +80°C. It is available in pressure ranges from vacuum to 600 bar gauge or absolute and can be supplied with 4-20mA, 0-5v, 0-10v or 0.5 - 4.5v outputs. Units ...
Series M5HB Ultra-Fast and Precise Pressure Transmitters
The Series M5HB pressure transmitter have a 0-50kHz dynamic range and M5 pressure connection are suitable for both static and dynamic (ie. fast pressure pulsations at close proximity) pressure measurements. The sensors have digital temperature compensation over temperature ranges of -20-125C or -40 to 180C which provides an accuracy of ...
Flush Diaphragm Pressure Transmitter, Series DMP331, ranges from vacuum up to 600 Bar, with 1" or 1½" or 2" triclamp hygenic stainless steel fitting, accuracy 0.25 - 0.5%, operating temperature -25 to +125°C. Output 4-20mA, 0-10V, 0-5V ...
Industrial Pressure Transmitter for Aggressive Media. The DMK 331 is a pressure transmitter for universal applications in the industry as well as for especially viscous, pasty or highly contaminated media. Basic element is a mechanical and chemical robust ceramic sensor. A variety of standard output signals as well as mechanical ...
Terwin 2000 Series Extrusion Pressure/Temperature Transducers
The Terwin 2000 series transducers have been designed to meet the most exacting requirements in modern day extrusion technology. Fitted with the unique Di‐Hard diaphragms, these transducers are suitable for extrudate temperatures up to 450C/842F and are resilient against attack from most abrasive or corrosive products. When it is required ...
