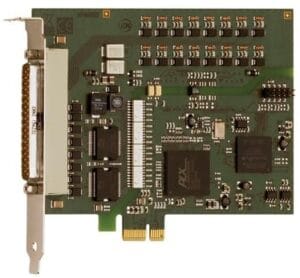

The APCIe-1500 is a PCI Express digital I/O board for up to 16 optically isolated digital inputs, including 14 interruptible inputs and 16 digital outputs (11-36V @ 500mA per channel, max 3A total). Suitable for digital inputs with a nominal 24V @ 6mA typical or 12V @ 4.2mA typical. The APCIe-1500 can monitor digital inputs with a max frequency of 5kHz. 16 digital outputs with a nominal 12 or 24V voltage. All connections via a ...

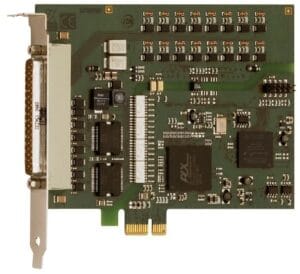

The APCIe-1516 is a PCI Express digital I/O board for up to 8 optically isolated digital inputs and 8 digital outputs (11-36V @ 500mA per channel, max 1.5A total). Suitable for digital inputs with a nominal 24V @ 2mA typical. The APCIe-1516 can monitor digital inputs with a max frequency of 5kHz. 8 digital outputs with a nominal 24V voltage. All connections via a 37-pin Sub-D male connector to screw terminal panels. Power supply 3.3V ...

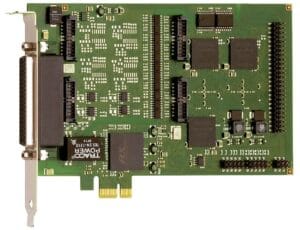

The APCIe-1711 is a fast multi-function and multi-channel counter board for the PCI Express bus. The APCIe-1711 is suited for applications like event counting, position acquisition, motion control, batch counting etc. in the harsh industrial environment. 4 programmable function modules, that can individually configured for each channel with one of the available functions: incremental counter, SSI synchronous serial interface, counter/timer, pulse acquisition, frequency/pulse width/period duration/velocity measurement, PWM, digital inputs and outputs. 64-bit drivers for Windows ...
