Data Acquisition Systems High Speed PC Cards

Grid View
List View

Edit Content

APCI-1016 Digital Input Board

The APCI-1016 is a PCI digital input board for up to 16 optically isolated digital inputs. Suitable for digital inputs with a nominal 24V @ 6mA typical. The APCI-1016 can monitor digital inputs with a max frequency of 5kHz and a signal delay of 70µs. Connection via a 37-pin Sub-D ...

APCI-1032 Digital Input Board

The APCI-1032 is a PCI digital input board for up to 32 optically isolated digital inputs, including 16 interruptible inputs. Suitable for digital inputs with a nominal 24V @ 5mA typical or 5V @ 6mA typical. The APCI-1032 can monitor digital inputs with a max frequency of 5kHz and a ...

APCI-1500 Digital I/O Board

The APCI-1500 is a PCI digital I/O board for up to 16 optically isolated digital inputs, including 14 interruptible inputs and 16 digital outputs (10-36V @ 500mA per channel, max 3A total). Suitable for digital inputs with a nominal 24V @ 6mA typical or 12V @ 4.2mA typical. The APCI-1500 ...

APCI-1516 Digital I/O Board

The APCI-1516 is a PCI digital I/O board for up to 8 optically isolated digital inputs and 8 digital outputs (10-36V @ 500mA per channel, max 3A total). Suitable for digital inputs with a nominal 24V @ 6mA typical. The APCI-1516 can monitor digital inputs with a max frequency of ...

APCI-1564 Digital I/O Board

The APCI-1564 is a PCI digital I/O board for up to 32 optically isolated digital inputs, including 16 interruptible inputs, 3 counter inputs and 32 digital outputs (10-36V @ 500mA per channel, max 6A total). Suitable for digital inputs with a nominal 24V @ up to 10.5mA on 4 channels, ...

APCI-1710 Multifunction Counter Board

The APCI-1710 is a Multi-Function Programmable Counter Board, The APCI-1710 has 20 optically isolated channels for digital inputs, 4 digital power outputs and 8 programmable as digital input or digital outputs. The APCI-1710 is suited for applications like event counting, position acquisition, motion control, batch counting etc. in the harsh ...

APCI-2016 Digital Output Board

The APCI-2016 is a PCI digital output board for up to 16 optically isolated digital outputs. The APCI-2016 can control digital outputs with voltages from 10 to 36V, max 500mA per channel and total 3A over the 16 channels. Connection via a 37-pin Sub-D male connector to screw terminal panels. ...

APCI-2032 Digital Output Board

The APCI-2032 is a PCI digital output board for up to 32 optically isolated digital outputs. The APCI-2032 can control digital outputs with voltages from 10 to 36V (APCI-2032-5 5 to 12V), max 500mA per channel and total 3A over the 16 channels. Connection via a 37-pin Sub-D male connector ...

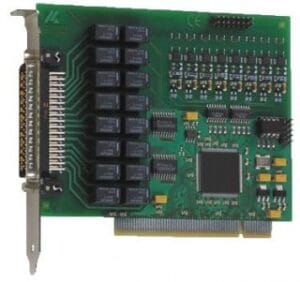

APCI-2200 Relay Board, Optically Isolated.

The APCI-2220 is a PCI relay board with 8 or 16 optically isolated electromechanical relays with change-over contacts and 8 digital inputs, 24V. Each relay can be configured as opening contact, closing contact or change-over contact. 8 bit programmable watchdog function with timer. Connection via a 50-pin Sub-D male connector ...

APCI-3010 Analog Input Board

The APCI-3010 is a PCI analog input board for up to 16 single ended or 8 differential inputs with 12-bit resolution and 200kHz throughput. Freely programmable ±10V and 0-20mA analogue inputs via a 37-pin Sub-D male connector and 4 digital input, 4 digital output and 24 digital TTL I/O channels ...

APCI-3016 Analog Input Board

The APCI-3016 is a PCI analog input board for up to 16 single ended or 8 differential inputs with 16-bit resolution and 200kHz throughput. Freely programmable ±10V and 0-20mA analogue inputs via a 37-pin Sub-D male connector and 4 digital input, 4 digital output and 24 digital TTL I/O channels ...

APCI-3110 Multifunction Board

The APCI-3110 is a PCI Multifunction board for up to 16 single ended or 8 differential inputs with 12-bit resolution and 200kHz throughput, plus 4 analog outputs. Freely programmable ±10V and 0-20mA analogue inputs plus four -10 to +10V analogue outputs via a 37-pin Sub-D male connector and 4 digital ...

APCI-3116 Multifunction Board

The APCI-3116 is a PCI Multifunction board for up to 16 single ended or 8 differential inputs with 16-bit resolution and 200kHz throughput, plus 4 analog outputs. Freely programmable ±10V and 0-20mA analogue inputs plus four -10 to +10V analogue outputs via a 37-pin Sub-D male connector and 4 digital ...

APCI-3120 Multifunction Board

The APCI-3120 is a PCI Multifunction board for up to 16 single ended or 8 differential inputs with 16-bit resolution and 100kHz throughput, plus 4 analog outputs. Freely programmable ±10V and 0-20mA analogue inputs plus four -10 to +10V analogue outputs via a 37-pin Sub-D male connector and 4 digital ...

APCI-3200 Temperature Measurement Board

The APCI-3200 is a PCI temperature measurement board with 4, 8 or 16 channels for thermocouples or 8 inputs for RTD (PT100) temperature sensors. Each channel can be configured for a thermo¶ðcouples, RTD or as an analog voltage input channel. The APCI-3200 includes 8 independent current sources for RTD and ...

APCI-3300 Pressure Measurement Board

The APCI-3300 is a PCI pressure measurement board with 4 or 8 channels for strain gauges or 8 voltage inputs. Each channel can be a differential strain gauge input or as an analog voltage input channel. The APCI-3300 includes 8 independent voltage sources for strain gauge inputs. 64-bit drivers for ...

APCI-3501 Analog Output Board

The APCI-3501 is a PCI analog output board for up to 8 analogue outputs with 14-bit resolution and 12-bit accuracy. Freely programmable ±10V analogue outputs via a 37-pin Sub-D male connector and 2 digital input and 2 digital output channels via 16-pin male connector to FB3000 ribbon to a separate ...

APCI-3600 Noise and Vibration Measurement Board

The APCI-3600 is a PCI noise and vibration measurement board with 8 channels for ±10V inputs via a BNC male connector with selectable frequencies from 2kHz to 200kHz. Each input channel can be a differential or single ended input with simultaneous sampling. The APCI-3600 includes 2 analogue outputs and 16 ...

APCI-3701 Length Measurement Board

The APCI-3701 is a PCI length measurement board with 8 or 16 channels for inductive transducers, LVDT or half-bridge sensors. The APCI-3701 includes a sinus generator supply. 64-bit drivers for Windows and Linux as well as programming samples are included, real-time drivers for Windows and Linux are available on request. ...

APCI-3702 Length Measurement Board

The APCI-3702 is a PCI length measurement board for up to 5 simultaneous acquisition of up to 5 inductive transducers, LVDT or half-bridge sensors. The APCI-3702 includes a sinus generator supply. 64-bit drivers for Windows and Linux as well as programming samples are included, real-time drivers for Windows and Linux ...

APCI-7xxx-3 Communication Boards

Communication board (1, 2, 4 or 8-port serial interface), 3.3 V / 5 V, modular mounting with MX-modules RS232/RS422/RS485/CL-20 mA current loop, with or without optical isolation, software configuration, 128-Byte FIFO buffer Installation under Windows as standard COM port. ...

APCIe-1016 PCI Express Digital Input Board

The APCIe-1016 is a PCI Express digital input board for up to 16 optically isolated digital inputs. Suitable for digital inputs with a nominal 24V @ 2mA typical. The APCIe-1016 can monitor digital inputs with a max frequency of 5kHz. Connection via a 37-pin Sub-D male connector to screw terminal ...

APCIe-1032 PCI Express Digital Input Board

The APCIe-1032 is a PCI Express digital input board for up to 32 optically isolated digital inputs. Suitable for digital inputs with a nominal 24V @ 6mA typical. The APCIe-1032 can monitor digital inputs with a max frequency of 5kHz. Connection via a 37-pin Sub-D male connector to screw terminal ...

APCIe-1500 PCI Express Digital I/O Board

The APCIe-1500 is a PCI Express digital I/O board for up to 16 optically isolated digital inputs, including 14 interruptible inputs and 16 digital outputs (11-36V @ 500mA per channel, max 3A total). Suitable for digital inputs with a nominal 24V @ 6mA typical or 12V @ 4.2mA typical. The ...
