Description

Connection of a LeveLine Logger to a Telemetry Device

This option can be used to obtain live data from a LeveLine Logger via a telemetry device.

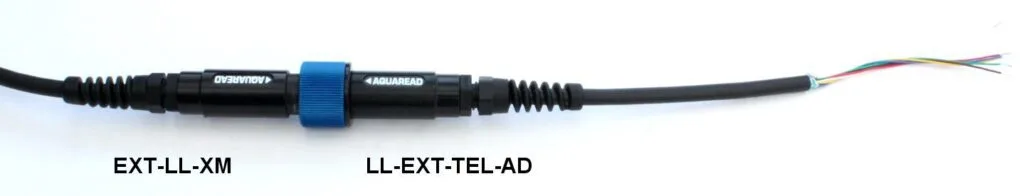

The LeveLine extension cable (Part No. EXT-LL-XM) is required along with a LeveLine Extension to Telemetry Adaptor (Part No. LL-EXT-TEL-AD) as shown above.

Connections

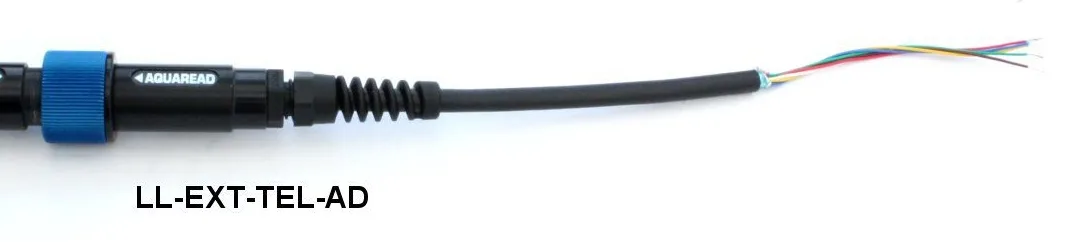

The LeveLine accessory cable LL-EXT-TEL-AD (extension cable to flying lead adaptor for telemetry) allows any LeveLine Probe to be connected, via a standard LeveLine extension cable (EXT-LL-XM), to a third party controller device.

This accessory terminates with a screened multicore cable, which allows external power to be supplied to the LeveLine and facilitates bi-directional serial data communication. The basic model LeveLine Mini Probe has a multicore cable permanently attached.

When installing a gauge (vented) type LeveLine probe with a vented cable, it is essential to fit a desiccant housing and cartridge to the open end of the cable in order to prevent any moisture entering the cable or probe.
