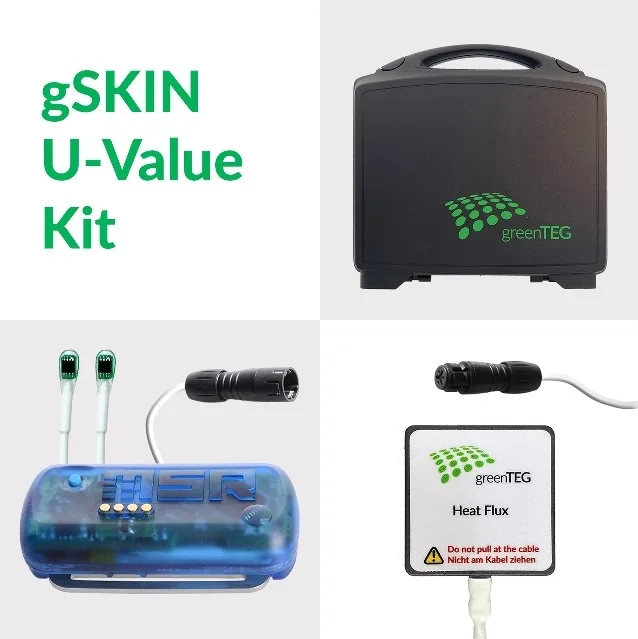

GSKIN U-value Kit are a plug and play solution to allow for the remote measurement of U-value (W/(mK)), heat flux (W/m²), and 2 temperatures (°C). The kit combines a GSKIN heat flux sensor with a custom designed miniature MSR logger and two external temperature sensors on 1 & 5m cables. The logger has an internal memory for up to 2 million readings and can be left to log the data, or in a live operation mode for a real time investigation. Each kit consists of a logger, sensors, USB cable, carry case and software. The logger is configured with the calibration data for the individually supplied sensors.
U-value is used to show the amount of heat loss in a building element such as a wall, floor or roof. It is also referred to as an ‘overall heat transfer co-efficient’ and provides a measure of how well parts of a building transfer heat. A high U-value indicates a poor thermal performance of the building envelope, whilst a low U-value indicates a high level of insulation. They are used as a way of predicting the composite behaviour of an entire building element rather than relying on the properties of individual materials.
| gSKIN Kit | 2615C |
| Heat Flux Sensor | XO677C, (size 30 x 30mm) |
| Heat Flux Range (W/m²) | ±300 |
| Resolutions (W/m²) | <0.11 |
| Temperature Accuracy (°C) | ±0.5 (-10 to +65 °C) ±2.0 (-55…+125 °C) |
| Data Capacity | 2 million readings |
| Operating Temperature Range | -50 to +80°C (-25 to +65°C for data logger) |
| Calibrated Temperature Range | -30 to +70°C |

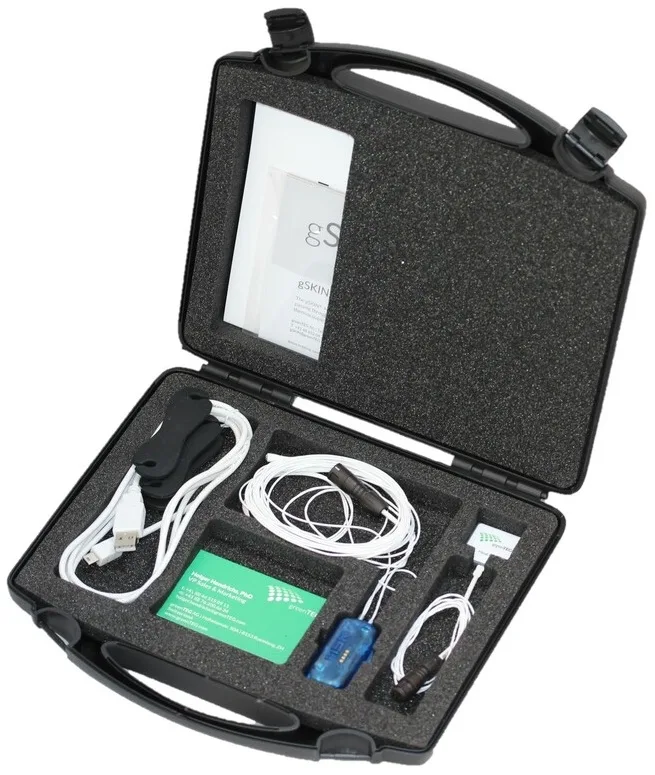

Each kit is supplied with a logger, heat flux sensor, 2 temperature sensors (1m & 5m cables), mounting tape and necessary software.
GSKINKIT-2615C
£1,816.05
MOUNT-1212
£33.54
MOUNT-1213
£43.48
MOUNT-1235
£50.93
MOUNT-1237
£21.12
