Description

Application

  • Direct AC voltage measurement.
  • Direct AC current measurement up to 1 ARMS or higher current ranges using suitable current transformers or current clamps.

Features

  • AC voltage measurement
  • AC current measurement
  • Power supply 24vDC or universally supplied 24-250vAC or 20-300vDC
  • Universally supplied units have 3-port galvanic separation between input, supply and output.
  • DIP Switch selectable current and voltage output ranges
  • Applicable in PELV/SELV circuits

Options

Type Input Output Supply

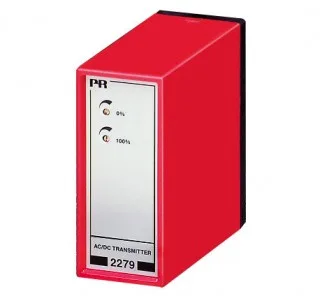

2279

 A: 0-0.5 VRMS
B: 0-1 VRMS
C: 0.2.83 VRMS
(0-4 V peak)
D: 0-5 VRMS
E: 0-120 VRMS
F: 0-230 VRMS
G: 0-0.5 ARMS
H: 0-1 ARMS		 0: Special.
1: 0-20 mA
2: 4-20 mA
4: 0-1V
5: 0.2-1V
6: 0-10V
7: 2-10V

 D: 24VDC
P: 24-230vAC
& 24-250vDC

The 2279 units are being discontinued on the 30th September 2018 and will be replaced by the 4179 AC/DC Transmitter.
