Utilising the wide range of data logger types in our range we are able to build bespoke logging systems to your requirements. Loggers can be built into fully weather proof transport cases making them easily portable and suitable for use in the harshest environments. We can also integrate a wide range of sensors for temperature, pressure, flow, displacement, vibration etc.
Typical Applications:
 |
Portable wellhead logging system for pressure and temperature
With 8 channel data logger (512K or 1800K memory), built into Peli IP67 transport case with 4-20mA loop power supply for sensors, 4 x 15,000 PSI pressure transmitter and K type thermocouple temperature sensor. All sensors and communications connected via IP67 bulkhead connectors. Internal battery back up to provide 7 days operation without external power. External mains power supply an battery charger.Windows software, download cable. Sensor compartment in case for transit. |
 |

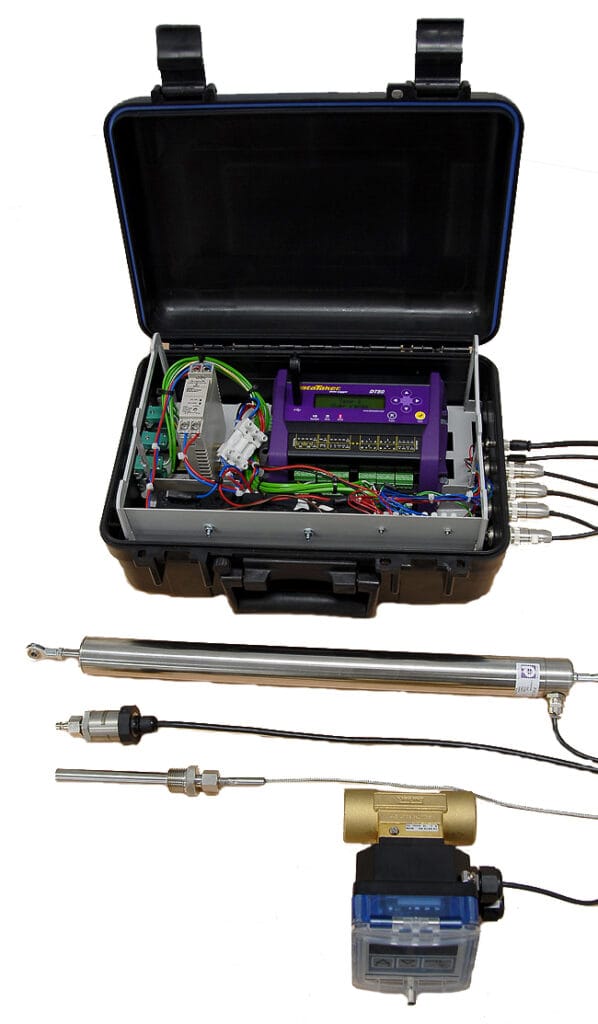

Datataker DT80 Portable Data Logger Kit
Fitted in an IP67 Peli case with mains power supply and battery backup. External sensors for flow, rate, hydraulic pressure, temperature and valve position. Sensors connected via bulkhead connectors. The system was designed to monitor a large actuated valve with a log rate of 5hz, triggered when the valve began to open or close, in order to identify problems with the opening sequence. Due to the large amounts of data recorded (up to 5 million readings) a USB memory stick was used to retrieve data from the logger. The DT80 also has the ability to publish data direct to a website without the use of a PC, using it’s internal web server. |
 |

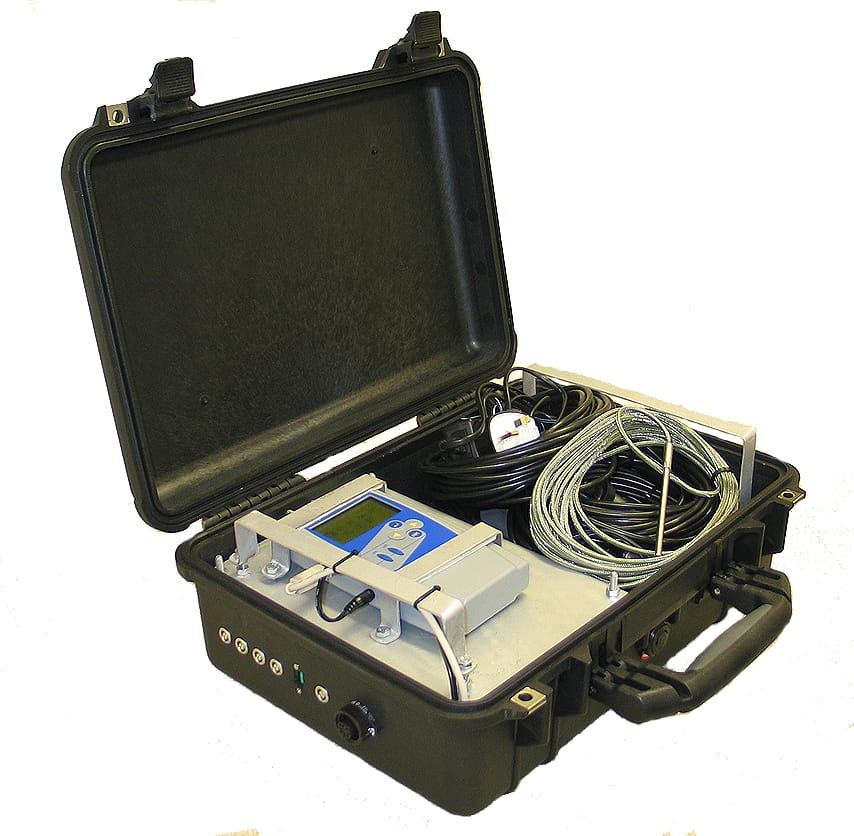

SQ2010 Portable Data Logger Kit
Used to monitor pressure on remote treatment works. The Logger is fitted in an iP67 carry case, with battery backup to allow several weeks of operation without external power. The SQ2010 holds 1.8 million readings providing ample memory for continuos logging over extended periods. Logging can be stopped and started from the logger keypad, enabling operation away from site without the need for a laptop PC. Many other sensor types can be fitted including: temperature, vibration, position, angle, flow rate, flow total, level etc. We can build up a portable data logger kit to meet your exact requirements. Contact our technical sales team for more details. |
